Control Switch Installation

Technical Wiring Resources & Safety Requirements

⚠️

Licensed Electrician Required

Triox Shutters does not perform electrical installations. For your safety and to maintain product warranty, all control switches must be installed by a licensed electrician in accordance with local electrical codes.

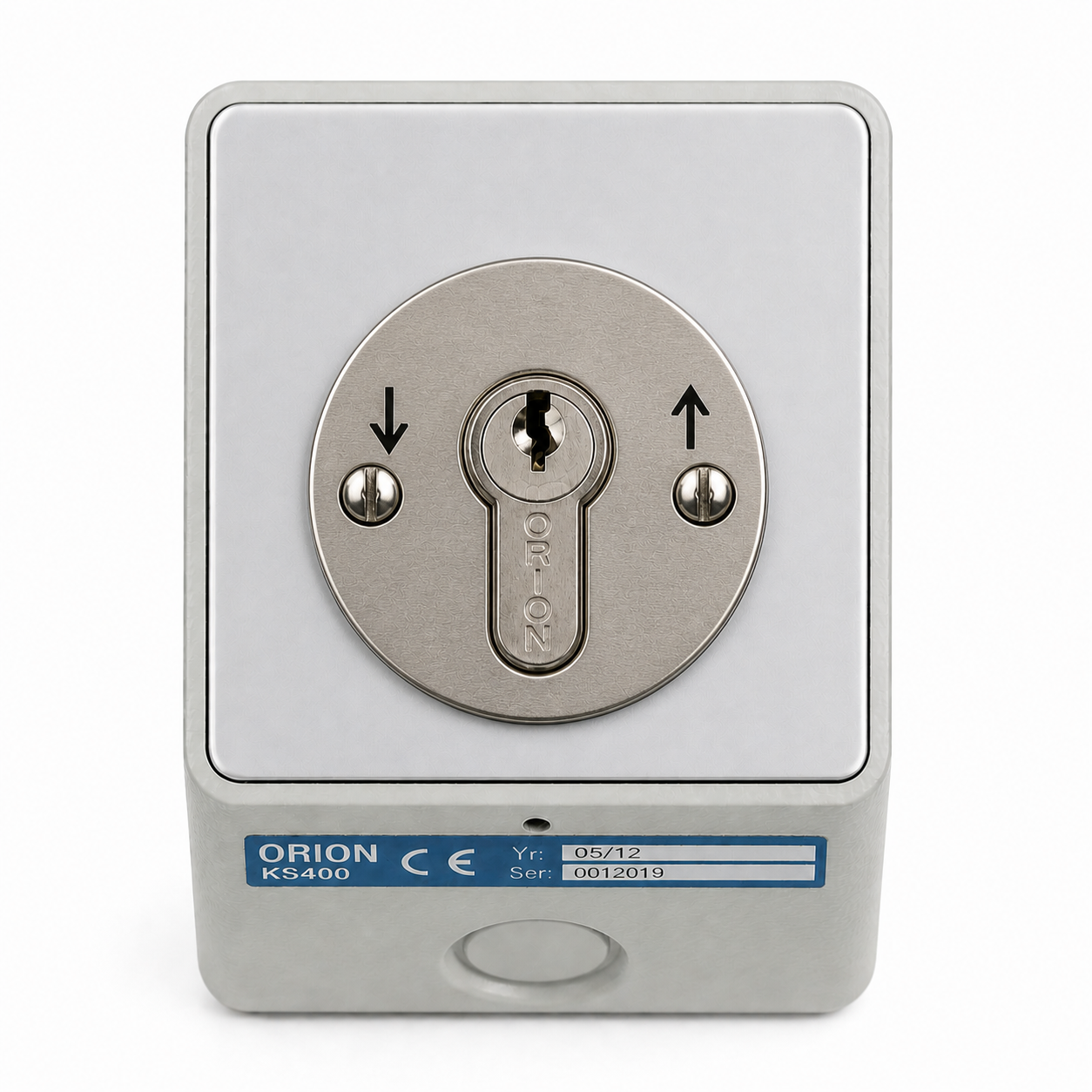

Roller shutter key switch

High-Security Key Switch

Standard 110/120V wiring for Orion High-Security outdoor/indoor key switches.

Note: Exterior installations require proper moisture drainage. Ensure the factory drain hole faces DOWNWARD.
Download Installation Diagram

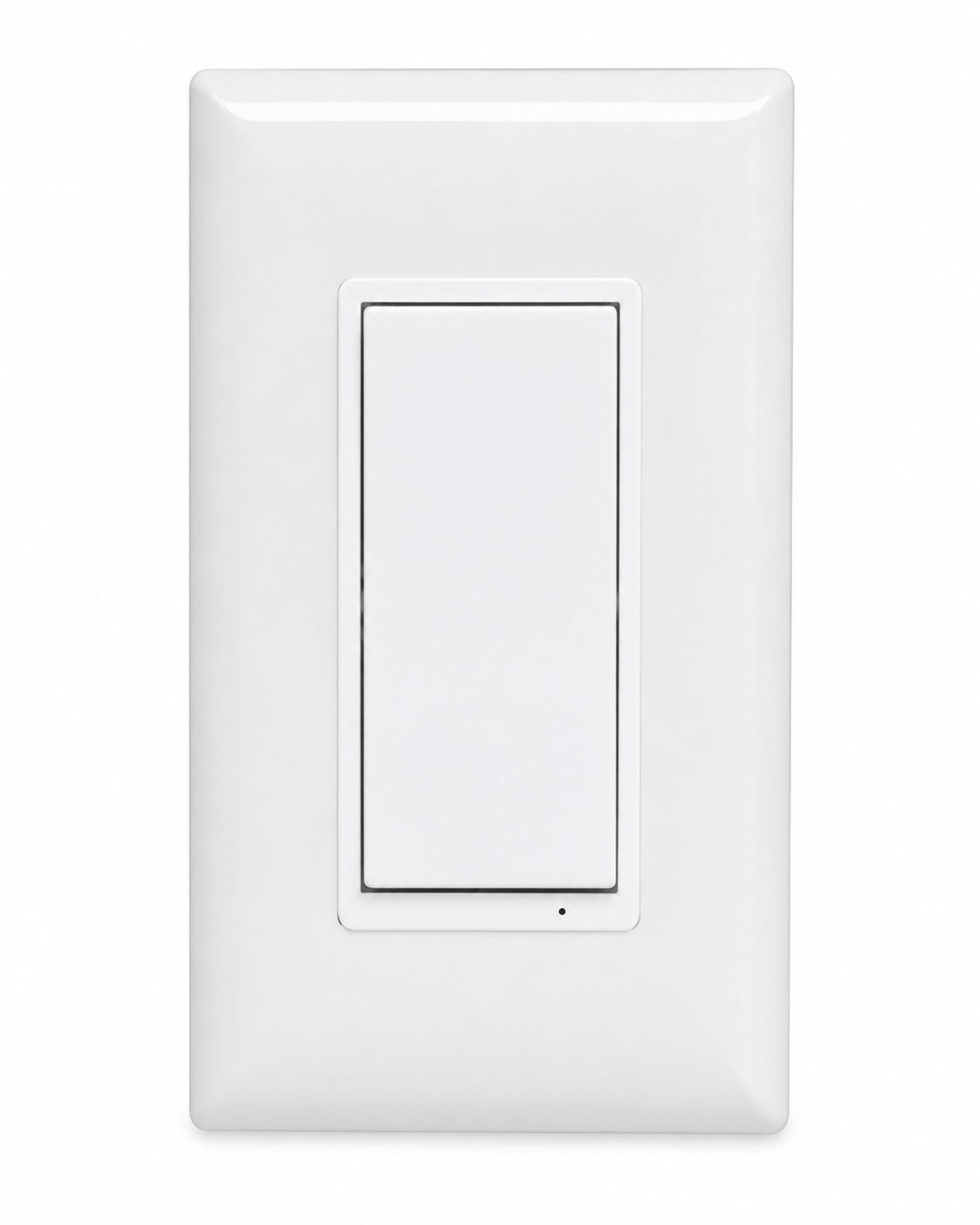

Interior Momentary Paddle Switch

Momentary Paddle Switch (Indoor Use)

Wiring configuration for recessed or surface-mounted interior rocker switches.

Download Installation Diagram

Note: While Triox Shutters does not perform electrical work, we provide full technical support to your licensed installer. For assistance during the wiring process, call us at  +1 (825) 734-4242
